In Stock Machines

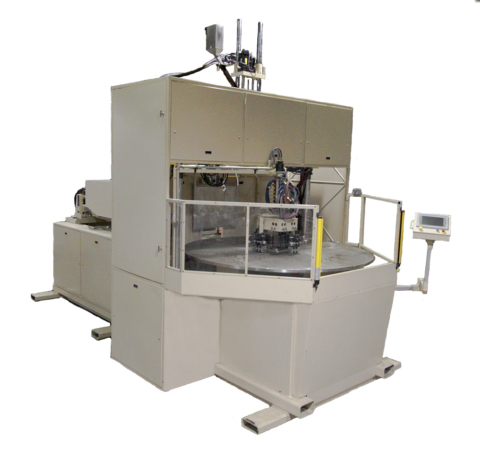

• 100” Dia. Table
• 2 or 4 Station
• 34”x26” Mold Base
• 58 oz. Horizontal  Injection  Unit
...

• Keba Controller
• Energy saving KEBA servo pump
• Front to back shuttle table
• 14” x 25” platens
• 3 oz. shot size

Currently being built

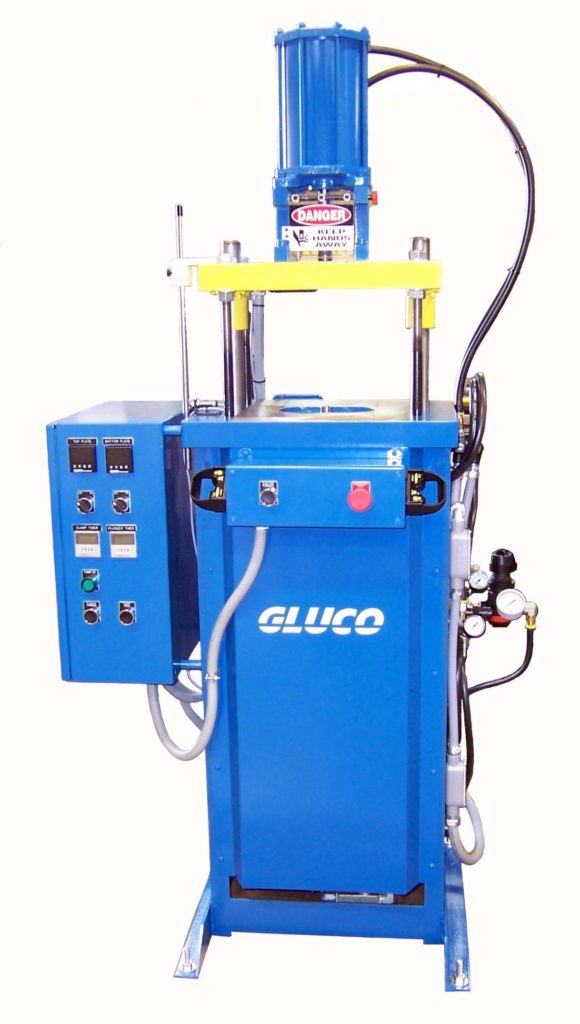

• 4 post clamp design
• Pneumatic clamp
• Allen Bradley micro-PLC with push button interface
• 1 ⅛” or 1 ⅝” pot and plunger
• 1 ⅛” = 3.844 in³ / 2.2 oz.
• 1 ⅝” = 8.036 in³ / 4.6 oz.
• 3 ⅞”: transfer pot length
• 2,800 lb. transfer ram force
• 6” transfer ram stroke
• 220V/Single Phase/60hz or as requested
• 10-ton clamp force
• 12” x 12” platen size
• 5” clamp stroke
• Heater plates – 2 heater plates with mounting holes, 4 heater rods per plate and thermocouple and temperature controllers

• New/old inventory
• 85 ton clamp tonnage
• 980mm rotary table
• 5.2 oz vertical injection unit

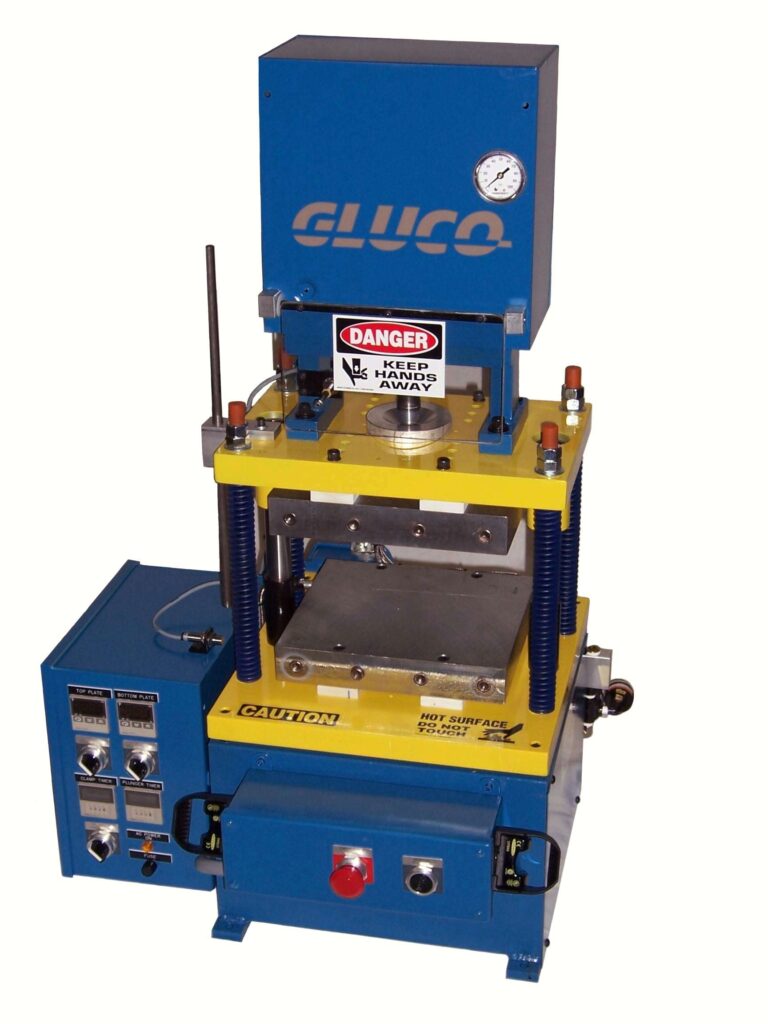

• 5-ton 4 post clamp design
• Pneumatic clamp mechanism
• Allen Bradley mini-PLC with push button interface
• 1” or, 1⅛” pot and plunger
• 1” = 3.043 in³ / 1.75 oz.
• 1 ⅛” = 3.844 in³ / 2.22 oz.
• 3⅞” transfer pot length
• 2000 lb. transfer ram force
• 6” transfer ram stroke
• 220V/Single Phase/60hz, or as requested
• 5-ton clamp force
• 10” (F/B) x 11” (L/R) platen
• 4” clamp stroke
• Heater plates included: 2 heater plates with mounting holes, 4 heater rods per plate, thermocouple, and temperature controllers

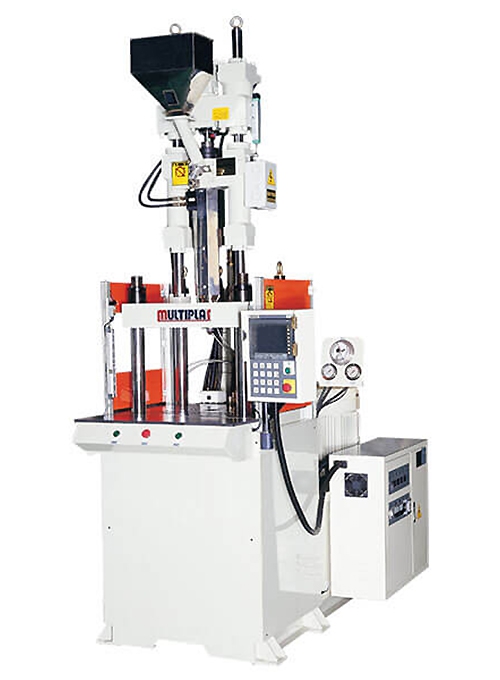

•  35 ton 4-post clamp design
• 2.2 oz. vertical injection unit
• Stationary table

• 35 ton C-frame clamp design
• 5.5 oz. horizontal injection unit
• Left/right shuttle table
