E Series Models E5 - E10 Compression / Transfer Press

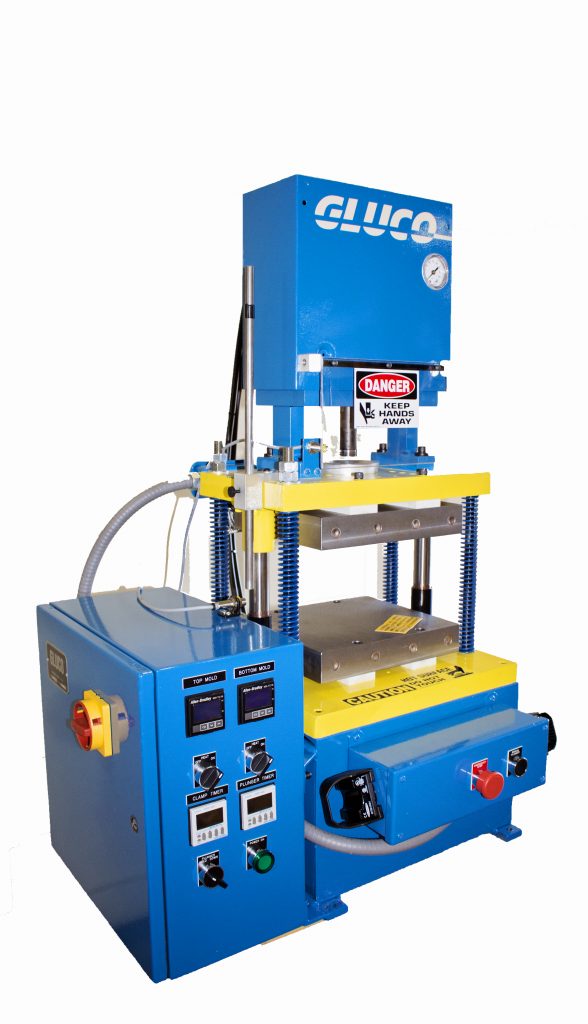

Transfer Press for INSERT MOLDING and ENCAPSULATING electronic components, medical parts and other items with epoxies, silicone, diallylphthalate, silicone rubber and other thermosets. The Model E10-1 is pictured to the left and the Model E5 below.

These presses are air powered, direct acting, simple to install and operate.The 5 ton E5, is to be placed on the top of a bench and is highly energy efficient, clean, and silencer equipped for quite operation. It is well proven in production and laboratory environments molding a wide variety of thermoset compounds.

Key features:

  • P.L.C. controlled for flawless sequencing.
  • Digital temperature controllers to maintain +/- 1° F on the optional heated platens.
  • Pneumatically operated pot and plunger for transferring molding compounds into your mold.
  • 2 hand anti tie down opto touch buttons for a safe ergonomic operation.
  • Digital timers for precise cure time.

Optional features:

  • 2250 lbs ram force at 130 PSI
  • Transfer pot and plunger size:
  • 1 1/8″ or 1 5/8″ diameter x 3 7/8″ long
  • Heater plates, including heaters4 ½” press stroke
  • 4 1/2″ press stroke
Specifications: Model E5
Model E5 Model E10
Clamp Force at 100 PSI 5 10
Opening Force, lbs 1200 lbs 2000 lbs
Press Stroke, maximum 4″ 4″
Transfer Ram Force, lbs 2000 lbs 2800 lbs
Transfer Ram Stroke 6″ 8″
Air Consumption SCF/cycle 3.7 7.9
Overall Dimensions 18″ x 26″ x 43″ 18″ x 26″ x 43″
Shipping Weight, approx. 450 800
Maximum Mold Base 8″ x 10″ 12″ x 12″
OPTIONAL FEATURES Bottom Eject
